Agola Series LED Street Light
  • Agola
  • Agola
  • Agola
  • Agola
CE CB ENEC RoHS TM-21 LM-79

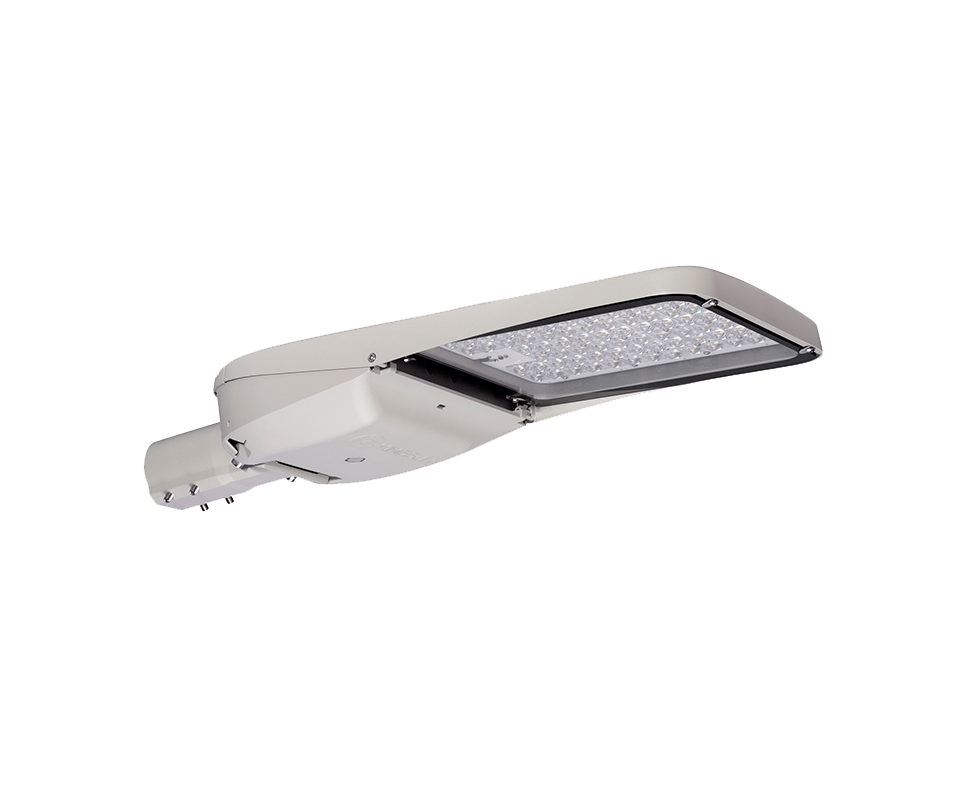

Agola Series LED Street Light

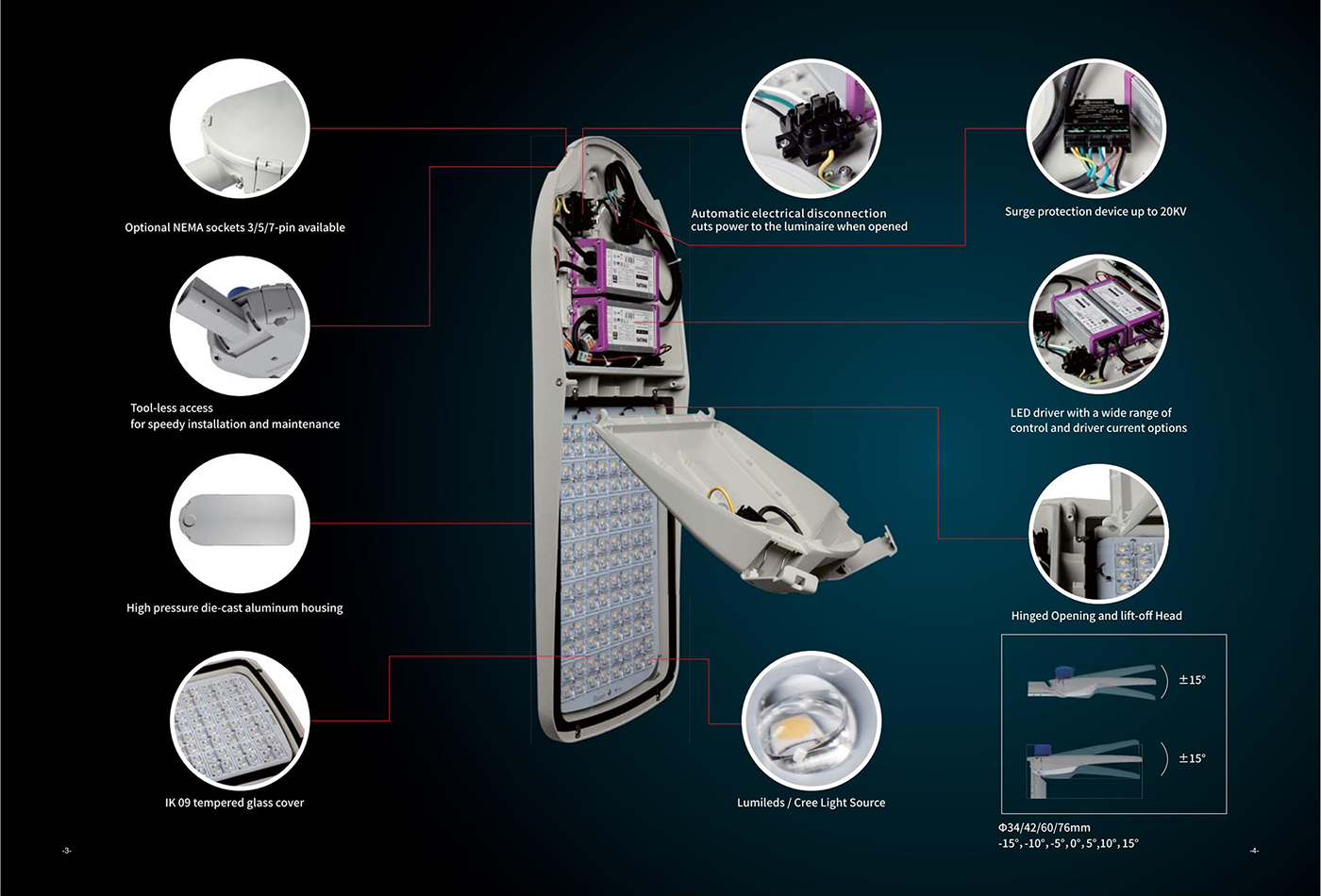

Agola, featured with the universal functions of smooth diecast aluminum body, IK 09 tempered glass cover, toll-free access driver chamber, utilized the cutting-edge LED Light sources with a wide range of in-house designed optic lens actualized this series for variety lighting applications. In addition, the pre-reserved 5,7-pin NEMA and OLMA socket are ready for future smart cities.

  •

    Tempered Glass Cover

  •

    NEMA Socket Available

  •

    Tools Free

  •

    Lumen Efficiency>140lm/W

  •

    Type II or III or IV Light Distribution

  •

    Protection IP66/IK09

Want to check other products? Check here.. Or you could write to us

Optical Specs

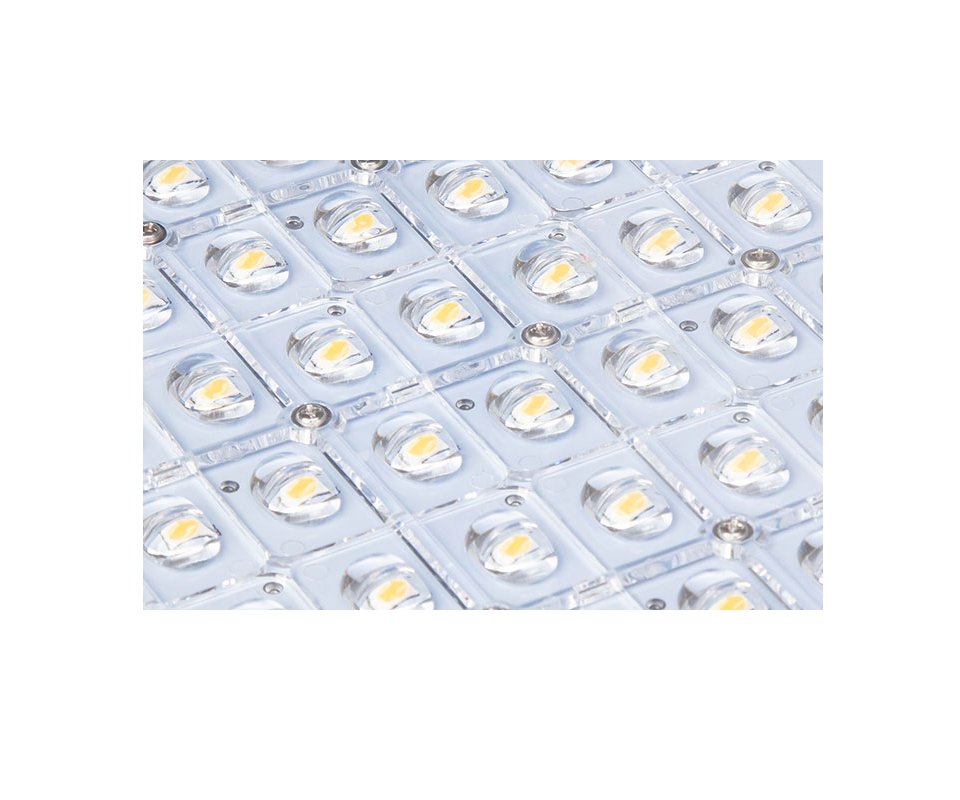

LED Light Source 5050( LUMILEDS / Cree / Osram / Lightning)
LED Color Temperature 4,000K (5,000K and 3,000K optional)
Color Rendering Index Ra>70(80 optional)
Light Distribution & LENS Kit Type II / Type III / Type IV

Other Specs

Operating Temperature & Humidity ‐40℃～50℃ / 10～95RH
Storage Temperature ‐20℃～45℃
Protection IP66/IK09

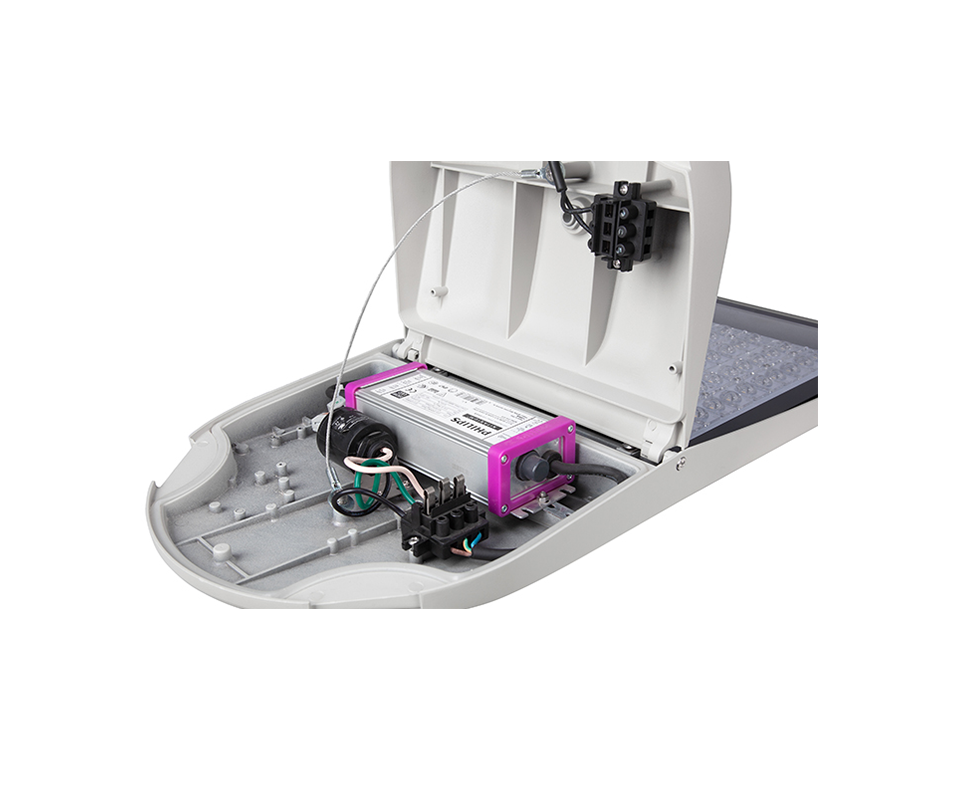

Opening Driver Chamber Tool‐free
Safety Feature Lift‐off head, With automatic electrical disconnector
L80 Hours @ 25℃ >93,000 hours

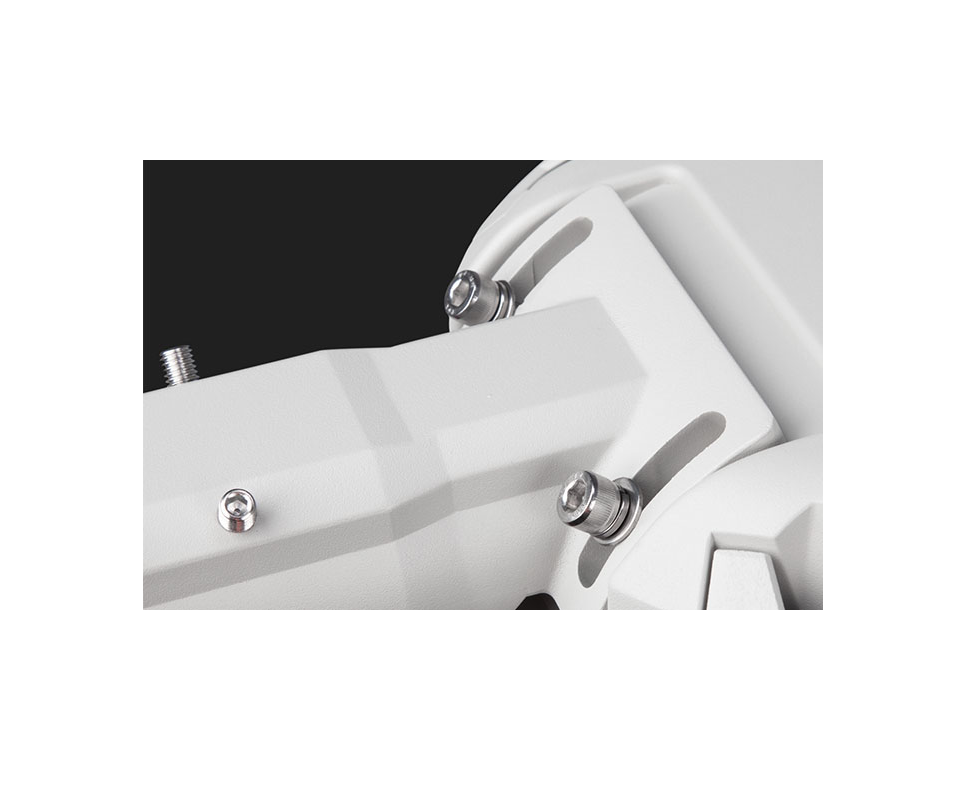

Mounting side entry and post top with tilt angle ‐15º～+15º(in steps of 5º)

Electrical Specs

Input 100‐220‐240‐365V 50/60Hz
Power Factor >0.95
Surge Protection 10KV(options 20KV)
LED Driver Philips LED Driver(Inventronics/MOSO optional)
Dimming W/O; 1‐10V / DALI / Programmable / NEMA socket / Photocell
Insulation Class I / Class II options

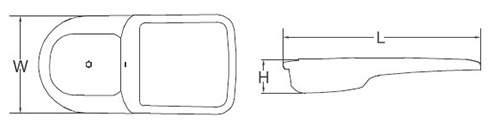

Model Number Product Nominal Power (W) # of LEDs Flux @ 5000K (lm) Weight(KG) Dimensions (mm)
RL455008 Agola‐S 20 8 2,800 4.60 L432 x W209 x H111
RL455012 30 12 4,200 4.60 L432 x W209 x H111
RL455016 40 16 5,600 4.60 L432 x W209 x H111
RL455024 Agola‐M 55 24 7,700 6.90 L510 x W256 x H102
RL455032 75 32 10,500 6.90 L510 x W256 x H102
RL455040 90 40 12,600 6.90 L510 x W256 x H102
RL455044 105 44 14,700 6.90 L510 x W256 x H102
RL455056 Agola‐L 120 56 16,800 8.10 L570 x W287 x H102
RL455068 150 68 21,000 8.10 L570 x W287 x H102
RL455084 Agola‐XL 180 84 25,200 10.90 L795 x W340 x H113
RL455096 210 96 29,400 10.90 L795 x W340 x H113
RL4550112 240 112 33,600 10.90 L795 x W340 x H113
RL4550A112 280 112 39,200 10.90 L795 x W340 x H113

Agola Series LED Street Light

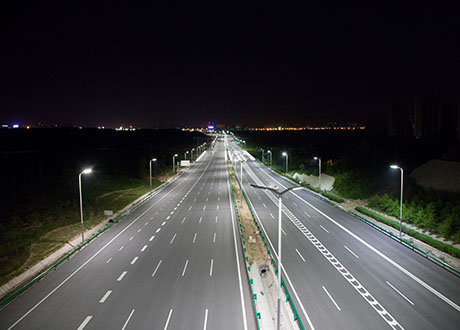

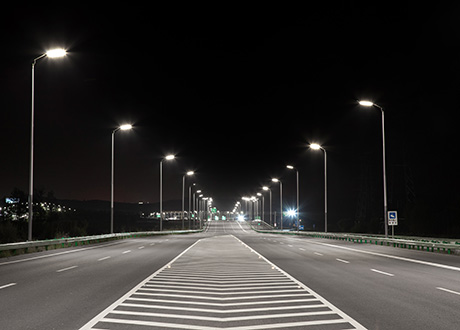

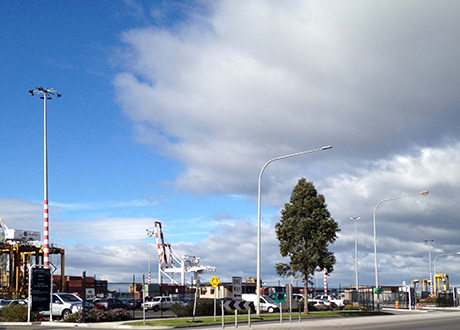

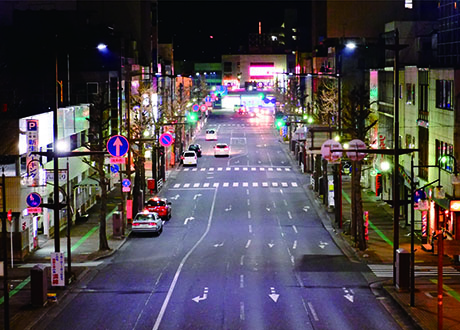

Project References

  • Agola Series LED Street Light
  • Agola Series LED Street Light
  • Agola Series LED Street Light
  • Agola Series LED Street Light
Want to check more lighting solution from Kingsun? Click Here. Or you could check our Case Study. Case Study
